Name: Stainless steel ball valve 790 3 piece body BSP 1/4''
SKU: 7914
Price: 9.3571428571429 EUR
Availability: InStock

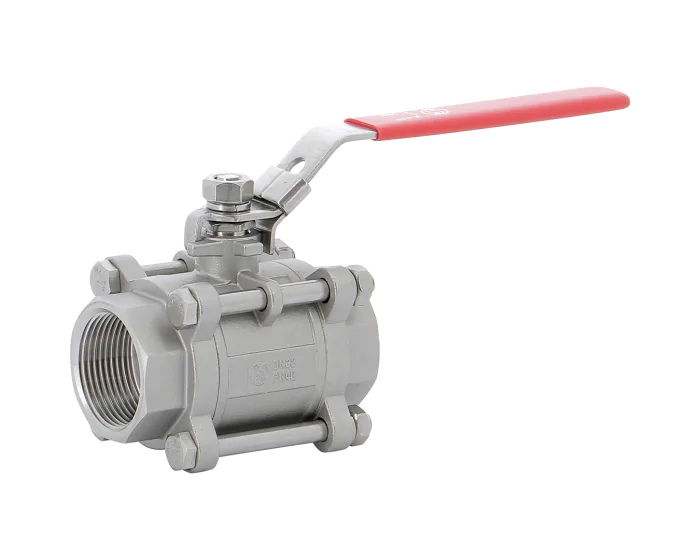

Stainless steel ball valve 790 3 piece body BSP 1/4''

Stainless steel ball valve 790 3 piece body BSP 1/4''

€9.36 (excl. btw)

The 790 series ball valve , 3-piece body in stainless steel with BSP female/female connection, with PTFE packing gland for chemical, pharmaceutical and petrochemical industries.

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Three-piece carbon steel and stainless-steel ball valves Syveco offers two different three-piece body ball valves. One is in A216WCB carbon steel while the other one is in CF8M stainless steel. They come with BSP or NPT connections, and SW or BW options. Their diameters are comprised between ¼'' and 4''. These models of ball valves also have a certain number of common features, such as: PTFE seats Full bore PTFE packing Anti-blowout stem Locking device The maximum operating pressure is 63 bar, while temperatures allowed range from -20 °C to +180 °C (see pressure/temperature graph on the technical sheet). Widely used in the chemical, petrochemical, and pharmaceutical industries, the three-piece ball valve offers a number of a great advantages: easy to disassemble, the device offers direct access to stud bolts, making the maintenance operations easier. We also offer a 304 stainless steel spare stem extension and a spare blue sleeve, as an option. Important: in compressed air systems, this type of three-piece ball valve only allows a maximum pressure of 10 bar.

Specification	Value
DN inches NPS	1/4''
Option certificate 3.1	Yes
CE risk category	III Module H
Thread standard	ISO 228-1
Tightness test standard	API 598
Stem sealing material	PTFE gland packing
Opening device	Handle
Application	Industry
Shaft/stem matérial	Stainless steel AISI 316
Lockable	Yes
Torque (Nm)	2
DN	DN8 - 1/4''
Face to Face (mm)	775.0
Fluid	Hydrocarbons. gas
Kv (m³/h)	5.2
Body material	Stainless steel CF8M (1.4408)
Number of ways	2
Bore	Full
ISO pad 5211	No
Packing gland	Yes
PS (bar)	63
Connections	BSP FF
Seats	PTFE-Glass
Ball material	Stainless steel AISI 316
TS max (°C)	180
TS min (°C)	-20
Ball valve design	3-piece body
Warranty period	2 years
CE	Yes
Handle material	Stainless steel AISI 304
Handle type	Red lever

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
7915	BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4''	790002	S1007998	€9.36 (excl. btw)	add to cart
7916	BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN10 - 3/8''	790003	S1007999	€9.51 (excl. btw)	add to cart
7917	BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2''	790004	S1008000	€12.63 (excl. btw)	add to cart
7918	BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4''	790005	S1008001	€15.33 (excl. btw)	add to cart
7919	BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1''	790006	S1008002	€22.24 (excl. btw)	add to cart
7920	BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4	790007	S1008003	€32.46 (excl. btw)	add to cart
7921	BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2	790008	S1008004	€54.09 (excl. btw)	add to cart
7922	BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2''	790009	S1008005	€77.59 (excl. btw)	add to cart
7923	BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2	790010	S1008006	€190.26 (excl. btw)	add to cart
7924	BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3''	790011	S1008007	€291.27 (excl. btw)	add to cart
7925	BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4''	790012	S1008008	€507.07 (excl. btw)	add to cart
